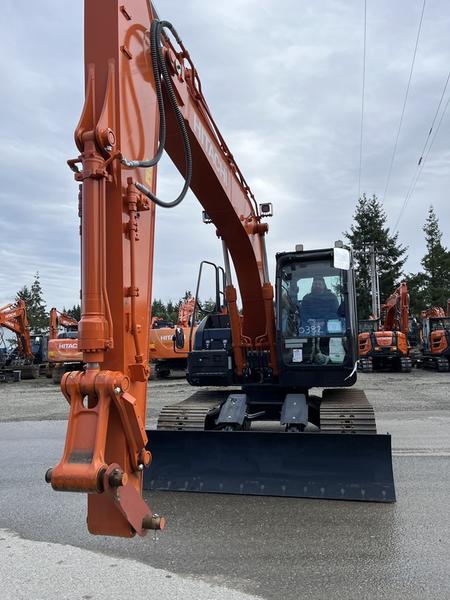

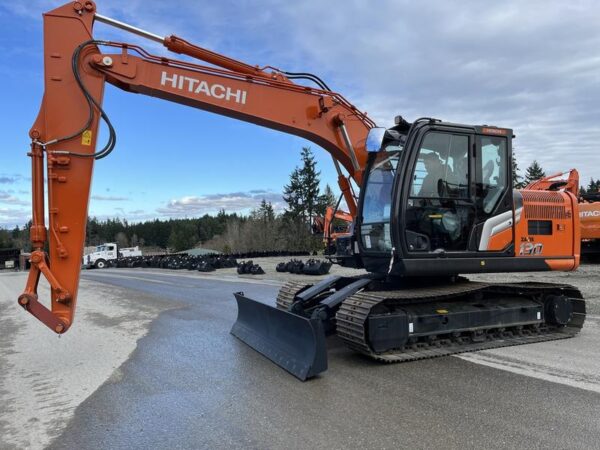

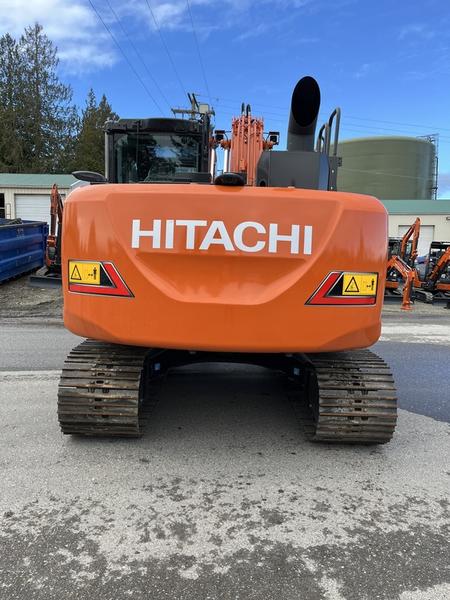

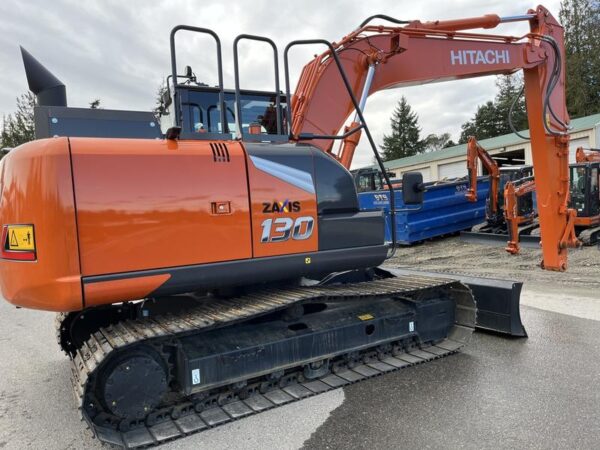

2026 Hitachi ZX130-7H Excavator equipped with hydraulic blade. PSM, Steel Wrist, and Black Max attachment

Hitachi Construction Machinery · ZAXIS-7 Series 2026 Hitachi ZX130-7H Medium Excavator · Isuzu AR-4JJ1X · HIOS IV Hydraulics · Tier 4 Final The Hitachi ZX130-7H combines strong breakout force, responsive HIOS IV hydraulics and advanced operator comfort in a compact mid-size excavator platform. Designed for construction, utility, roadwork and rental applications, the ZX130-7H delivers efficient fuel usage, smooth controllability and reliable digging performance with modern ZAXIS-7 technology. 105 HP · 19 FT 9 IN DIG DEPTH · 23,380 LBF BUCKET FORCE 105 HP Gross Power 19’9″ Dig Depth 28’9″ Reach 23,380 Bucket Force 33,951 LB Max Weight HIOS IV Hydraulics Overview Power & Hydraulics Powered by an Isuzu AR-4JJ1X 4-cylinder diesel engine with variable-geometry turbocharger producing 105 gross horsepower at 2,000 rpm. The HIOS IV hydraulic system uses dual axial piston pumps for smooth multifunction operation and improved fuel efficiency. Digging Performance Delivers up to 23,380 lbf of bucket breakout force with a maximum digging depth of 19 ft 9 in and reach at ground level of 28 ft 9 in, giving the ZX130-7H strong excavation capability across utility and site development applications. Operator Environment Spacious ZAXIS-7 cab with improved sound insulation, panoramic visibility and integrated seat suspension. Features include Bluetooth connectivity, USB charging, smartphone holder and an anti-glare 8-inch LCD monitor with customizable settings. Maintenance & Uptime Wide-opening service covers, grouped maintenance points and onboard maintenance monitoring simplify inspections and reduce downtime. Dual-element air filters and spin-on fuel filters help extend component life in demanding environments. Key Features HIOS IV hydraulic system with ECO, PWR and HP work modes Variable-geometry turbocharged Isuzu diesel engine 8-inch anti-glare multifunction LCD monitor Up to 16 customizable attachment presets 270-degree Aerial Angle camera system LED work lights and enhanced visibility package Large comfortable operator station with low-effort pilot controls Reinforced boom ends and durable undercarriage design 70% gradeability with strong traction performance Integrated Bluetooth, USB charging and storage solutions Technical Specifications Engine Engine Model Isuzu AR-4JJ1X Configuration 4-Cylinder Diesel · Variable Geometry Turbo Gross Power 105 hp @ 2,000 rpm Net Power 100 hp @ 2,000 rpm Hydraulic System Hydraulic System HIOS IV Main Pumps 2 × 27.7 gal/min Axial Piston Pumps Relief Pressure 4,974.8 psi Boost Pressure 5,264.9 psi Work Modes ECO / PWR / HP Performance Maximum Digging Depth 19 ft 9 in (6.03 m) Maximum Reach 28 ft 9 in (8.77 m) Reach at Ground Level 28 ft 5 in (8.65 m) Bucket Breakout Force 23,380 lbf (104 kN) Gradeability 70% Weights Operating Weight 30,865 – 33,951 lb Operating Weight Metric 14,000 – 15,400 kg Machine Information Year 2026 Make Hitachi Model ZX130-7H Vehicle Type Excavator Category Medium Condition New Location Marysville Hitachi ZX130-7H · ZAXIS-7 Series · Tier 4 Final · HIOS IV Hydraulic Technology
