Battery Load Tester BLT600S

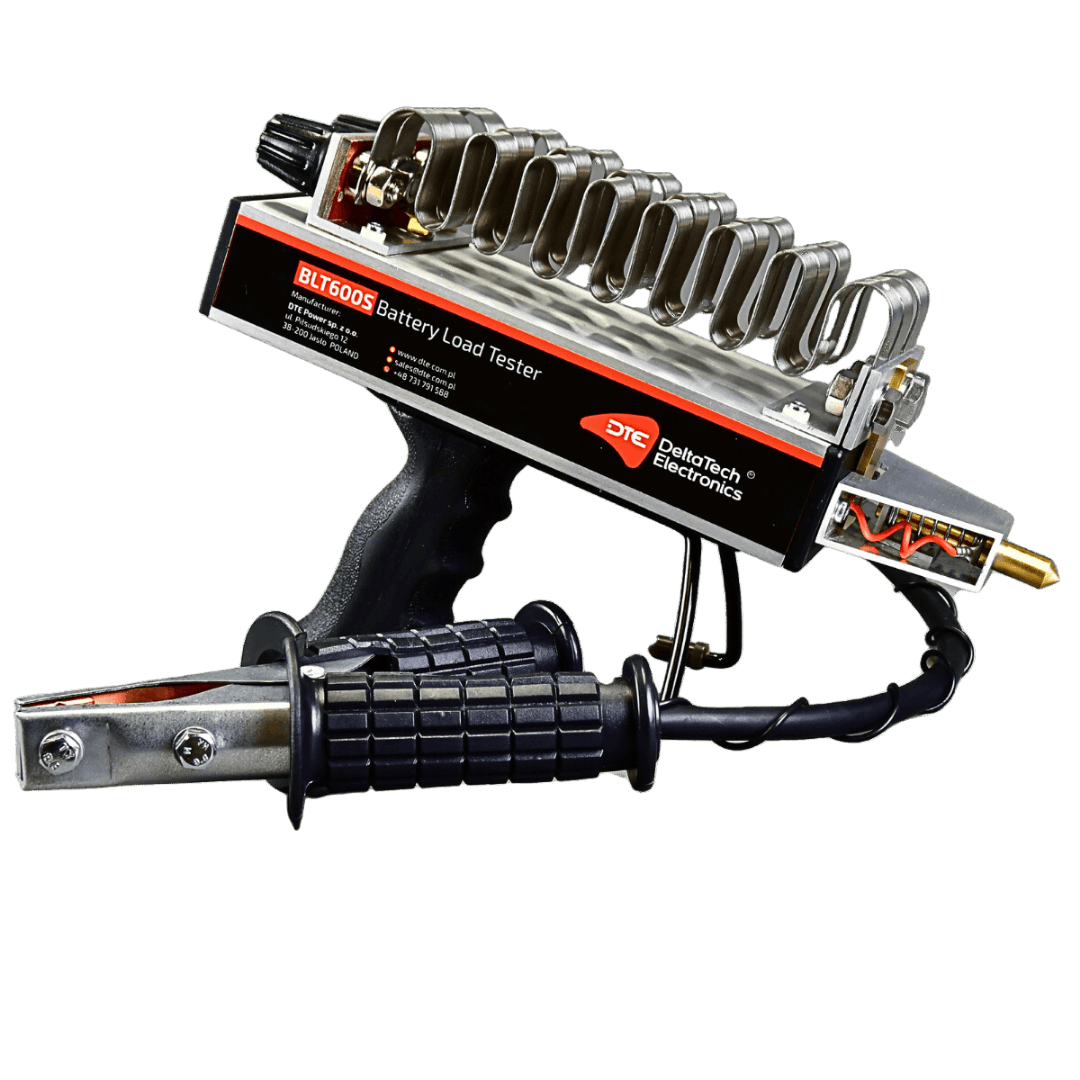

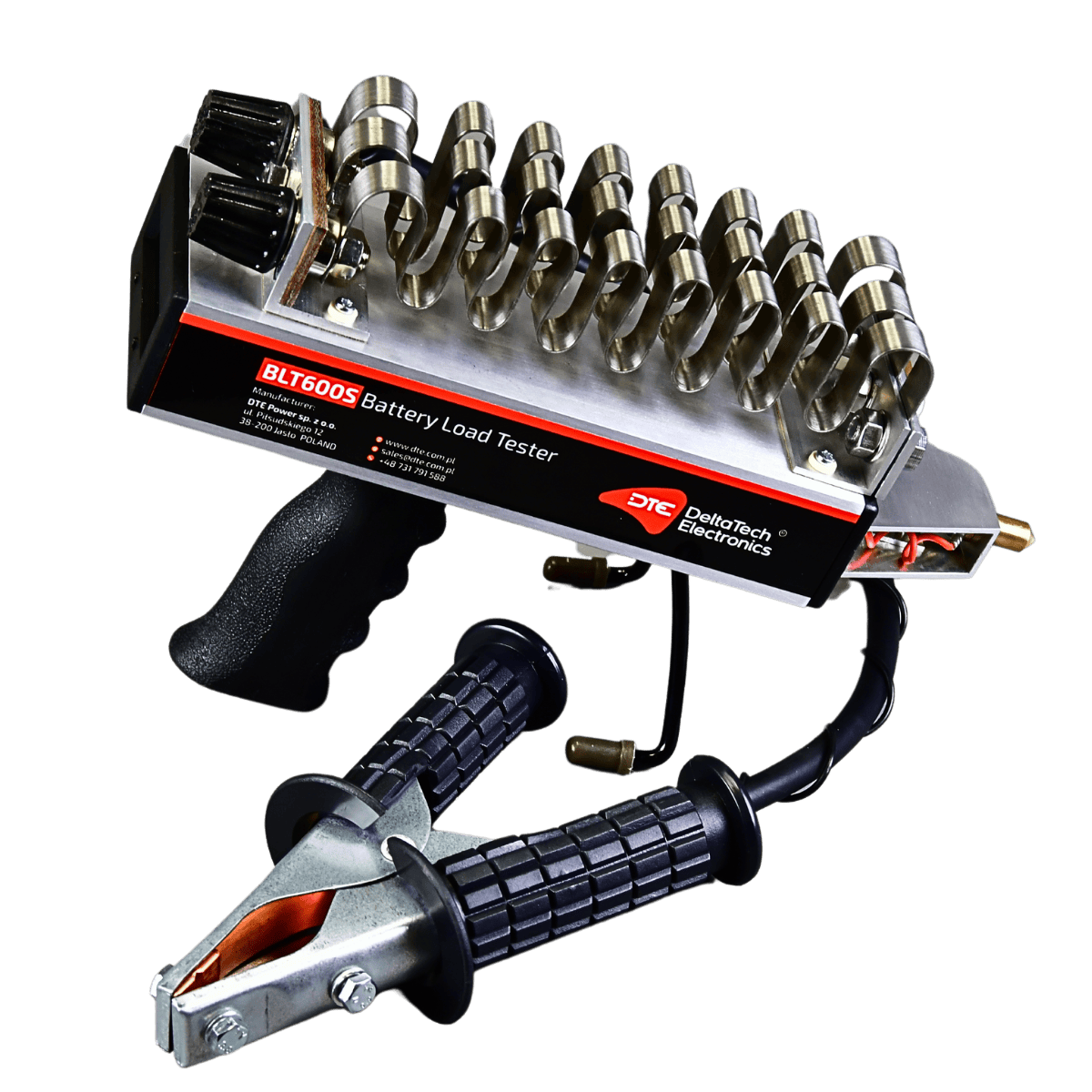

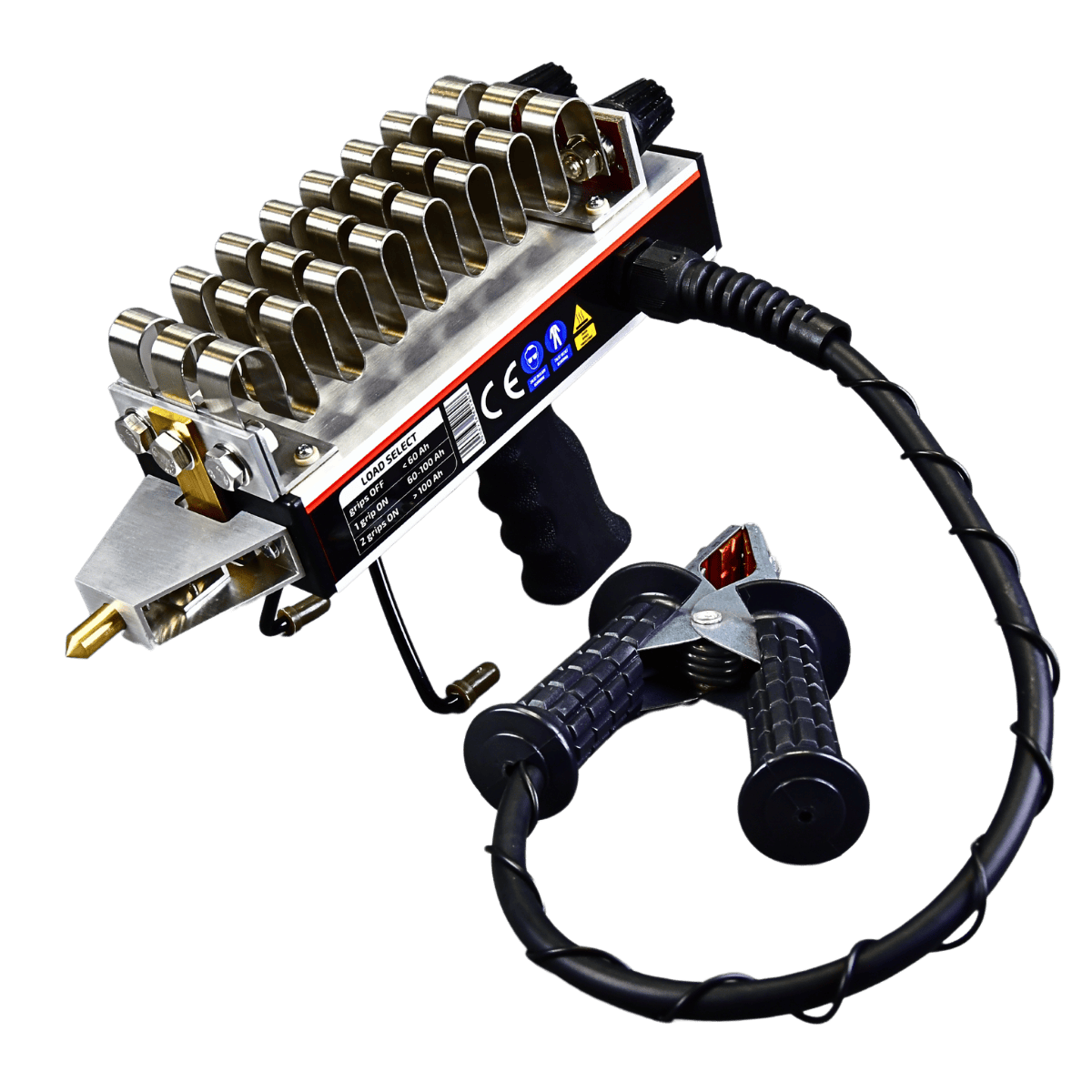

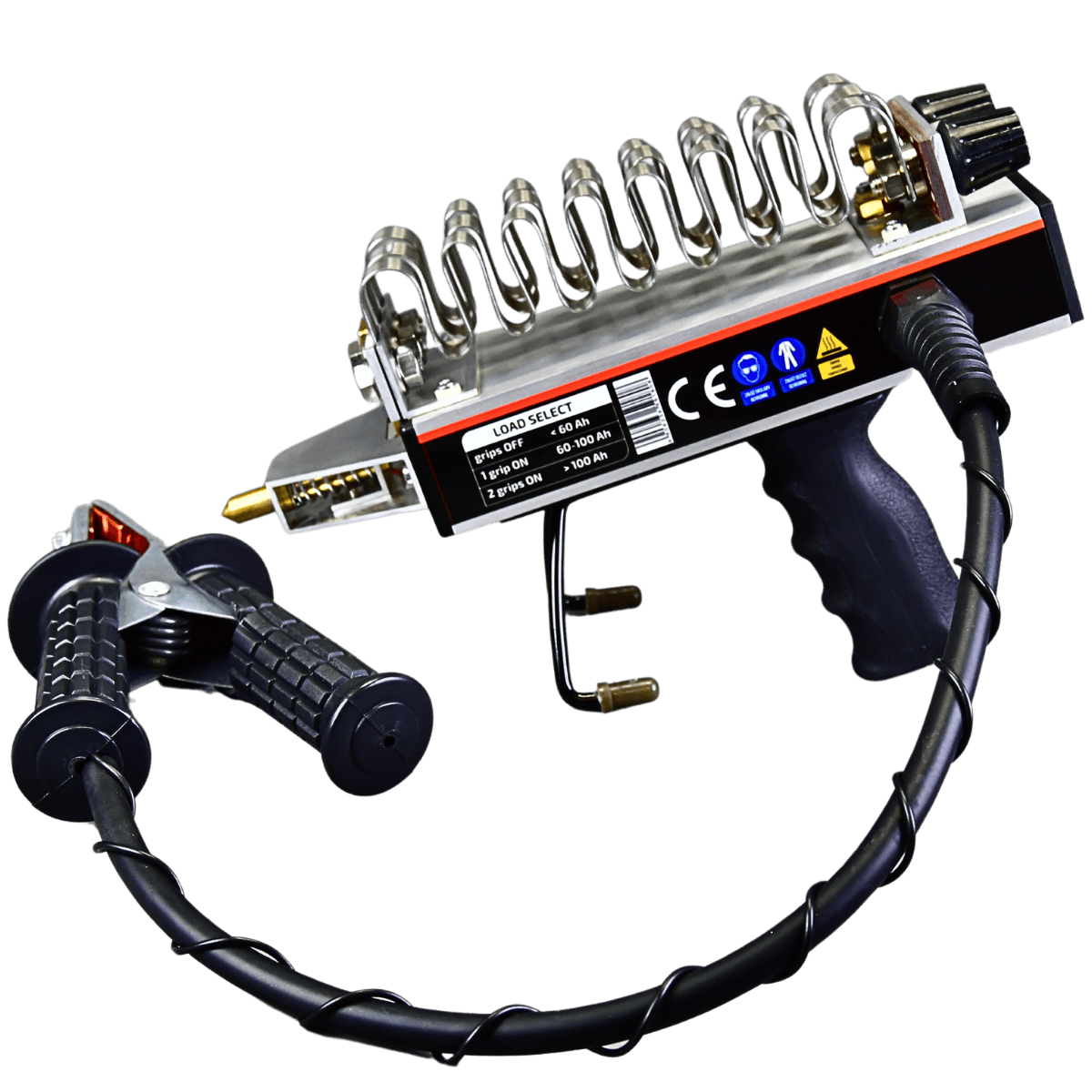

DescriptionBattery Load Tester BLT600S The load tester BLT600S is a professional load resistor designed by DeltaTech Electronics, based on the experiences of the best specialists in the battery industry. This Polish battery tester is used to test the efficiency of 12V and 6V batteries with capacities from 30Ah.The product can be successfully used in automotive workshops, automotive stores, specialized battery service points, and by manufacturers and importers of batteries. The load resistor BLT600S allows for testing the efficiency of batteries, assessing their performance, and identifying defects and wear – becoming an essential tool in points handling complaints. Battery tester BLT600S – basic technical parametersNominal voltage: 12V.Power supply: 3V – 2 AA/LR6 batteries.Voltmeter range: ±16 V, with an accuracy of ±0.5% 2 digits.Current load: max. 600ALength of measuring cable with clamp: 70cm ±1�vice dimensions: (L/W/H) 280 x 195 x 80 mm, weight 1.8 kg. Battery load tester – how does it work?Preparing the resistor for the battery testCheck the condition of the battery tester and its cables. Ensure they are in good condition and have no mechanical damage.Ensure a safe place to conduct the test. Avoid explosive gases and flammable materials!You do not need to check the battery status – the resistor BLT600S will do it for you.Your safety is the most important! Familiarize yourself with the warning signs on the body of the resistor and follow them. Connecting the load tester to the batteryConnect the connector to any terminal of the battery (post, screw, etc.) and apply the tip of the resistor to the other pole. The test can be conducted without maintaining polarity. The clamp can be connected to either the positive or negative post of the battery.Ensure that the connections are strong and stable.The device will automatically activate if the voltage of the tested battery is higher than 1V, and then it will conduct the efficiency test.If the resting voltage of the battery is lower than 1V, you can manually turn on the tester by pressing the left button on the voltmeter panel.Before proceeding to the load test, ensure that the tested battery is fully charged. Selecting parameters and load range of the resistor.On the tester, select the appropriate current load range depending on the battery capacity:12V: usually ranges 200A, 400A, 600A.6V: usually ranges 100A, 200A, 300A.The range selection is made using the knobs on the resistor. The device has 3 circuits – each for 200A for a 12V battery. When testing a 6V battery, the resistance of 1 spring is 100A. The first circuit of the resistor is permanently closed. By tightening the knob, you close the circuit activating the next winding. This increases the resistance by an additional 200A/100A. Performing the basic load test.Press the device against the terminal.Observe the voltage measurement on the display. The tester will subject the battery to the declared load.Pay attention to the results:In the case of a functional 12V battery – the voltage displayed on the screen should drop and stabilize above 8.5VIf the battery is faulty, the voltage will drop towards 0V The load test should not last longer than 10s. Performing the semi-automatic load test.Press the left button on the voltmeter. A timer bar will appear below the battery voltage on the display, counting down 6 seconds, which will start filling up after pressing the tester.Press the device against the terminal.Observe the voltage measurement on the display. The tester will subject the battery to the declared load and will inform with a double beep when the test is finished.Stop pressing the resistor – you can disconnect from the terminal of the tested battery.After pressing the right button, the battery tester display will show a graphical voltage curve, maximum and minimum measured voltage, and the measured voltage difference.The load test lasts 6s – after this time, the tester will inform about the end of the data collection phase. After exceeding 9s, an audible alarm is activated. Graphical presentation of battery measurement results Turning off the tester and disconnecting the cables.Before disconnecting the battery tester BLT600S, remember that the resistive windings are hot. Touching them may cause burns. Take care of your safety!Release the connection by pulling the tip of the resistor away from the terminal, and then disconnect the clamp from the battery.Place the device in a safe location. Avoid contact of the heated surface of the resistor with flammable gases and materials!The device will automatically turn off after 4 minutes of inactivity (pressing any buttons or taking measurements). It is possible to manually turn off the tester by pressing and holding the right button for more than 1 second. Analyzing results and concluding work.Compare the obtained results with the recommended values from the battery manufacturer.If necessary, send the battery for further diagnostics or replacement.Store the tester in a dry and safe place, away from heat and moisture sources. Battery load tester BLT600S – what sets it apart?Versatility of operation: BLT600S allows testing of both 6V and 12V batteries with a load of 100A /200A/ 300A (6V) or 200A /400A /600A (12V).Powered by two AA (LR6) batteries: The use of popular AA batteries ensures easy access to power and saves time and operating costs.Automatic activation upon detecting input voltage: The tester automatically starts when connected to the tested battery, saving the user’s time.Automatic shutdown (APO): This function saves batteries by automatically turning off the device after four minutes of inactivity.Self-test of the measurement system: The tester automatically checks its systems upon startup, ensuring correct operation and measurement reliability.Audible signaling: BLT600S informs the user of the start and end of the test, and also activates an audible alarm if the recommended time is exceeded.Bidirectional load testing: The ability to test regardless of how it is connected to the battery terminals, increasing work convenience. Distinctive technical parameters of the resistor:Aluminum housing with thick walls: The high thermal capacity of the housing allows for longer operation without the risk of overheating the tester.Extended and low profile: Allows operation in hard-to-reach places, increasing the stability of the device.Connection cable 25mm²: Ensures safe conduction of high current, increasing the durability of the cable and the efficiency of the device.Modular resistance springs: By tightening the springs, the user adjusts the load, allowing testing of different battery capacities.Unique serial number: Each tester has an individual number, which helps in identifying the device and increases security.  Distinctive software features of the load tester:Advanced voltmeter module: Graphically presents the voltage curve and records key parameters such as no-load voltage, under load, and voltage drop, facilitating result interpretation.Precise and averaged modes: The tester offers the option to operate in precise mode with a refresh rate of 8 times per second or in averaged mode (average of 4 measurements), stabilizing the displayed results.Summary of parameters before shutdown: Before turning off, the device presents a table with six key parameters, providing a complete overview of the tester’s operation.Icons for operating mode and battery status: Visual indicators inform about the current operating mode and battery charge level, increasing user comfort.Graphical and audible signaling of test time: A progress bar and audible signals inform about the 6-second duration of the test, then alert when the recommended time is exceeded. This aims to maintain the repeatability of measurement procedures.Distinctive mechanical features of the load tester:The battery load tester BLT600S is not just a manual resistor – it is a comprehensive solution that facilitates work in workshops.SecureSpring mechanism is an advanced spring system used in BLT600S, designed for optimal and safe operation during battery testing. A key element of this mechanism is a specially selected spring with precisely defined hardness, which:Minimizes pressure on the battery terminals: The spring provides optimal resistance. Less force is needed to close the circuit, which affects the condition of the battery terminals during measurements.Ensures smooth operation of the actuator: SecureSpring allows for smooth and stable movements during the operation of the device, reducing the slipping of the tip during work.Increases work comfort: With the appropriate hardness of the spring, the operation of the device is more ergonomic, requiring less physical effort from the user.Increases the reliability of the device: Thanks to SecureSpring, the tester operates more efficiently, lasts longer, and has a lower risk of damage, which translates into greater durability of the entire system.This device increases diagnostic confidence and provides precise measurements. With its advanced features, solid construction, and attention to detail, BLT600S is indispensable in the daily work of professionals. SecureSpring spring mechanismCheck the BLT600S tester in action – the reliability you need! The battery tester BLT600S is a Polish, advanced diagnostic tool that increases the effectiveness of correctly diagnosing SLI, EFB, and AGM 12V and 6V batteries. With its simple operation and ergonomic design, the testing process is quick and repeatable.In combination with the tester DBT-12 , BLT600S allows for a comprehensive assessment of battery conditions, helping to detect faults and assess their performance.Providing a maximum load of up to 600A, BLT600S is compact and extremely durable, making it an ideal solution for intensive use in:automotive workshops,automotive stores,battery service points.Its automatic functions, such as start and automatic shutdown upon detecting inactivity, allow users to focus on professional diagnostics without unnecessary surprises.By using the load tester BLT600S, you gain not only an advanced diagnostic tool but also full technical and service support. Our devices are created based on the highest quality standards, ensuring reliability and durability. Take advantage of an additional 12 months warranty after registering your purchase. Trust the experts at DeltaTech ElectronicsThe team at DeltaTech Electronics is supported by the best Polish experts in the battery industry. We are ready to assist at every stage of using our products. We offer professional technical support, advice, and post-warranty service to ensure that your battery tester will serve you for many years.  Na czym polega diagnostyka akumulatoraAkumulator – nie wystarczy go wymienić, trzeba go zaprogramować – część 1. Testery akumulatorów – dlaczego pokazują różne wyniki?
