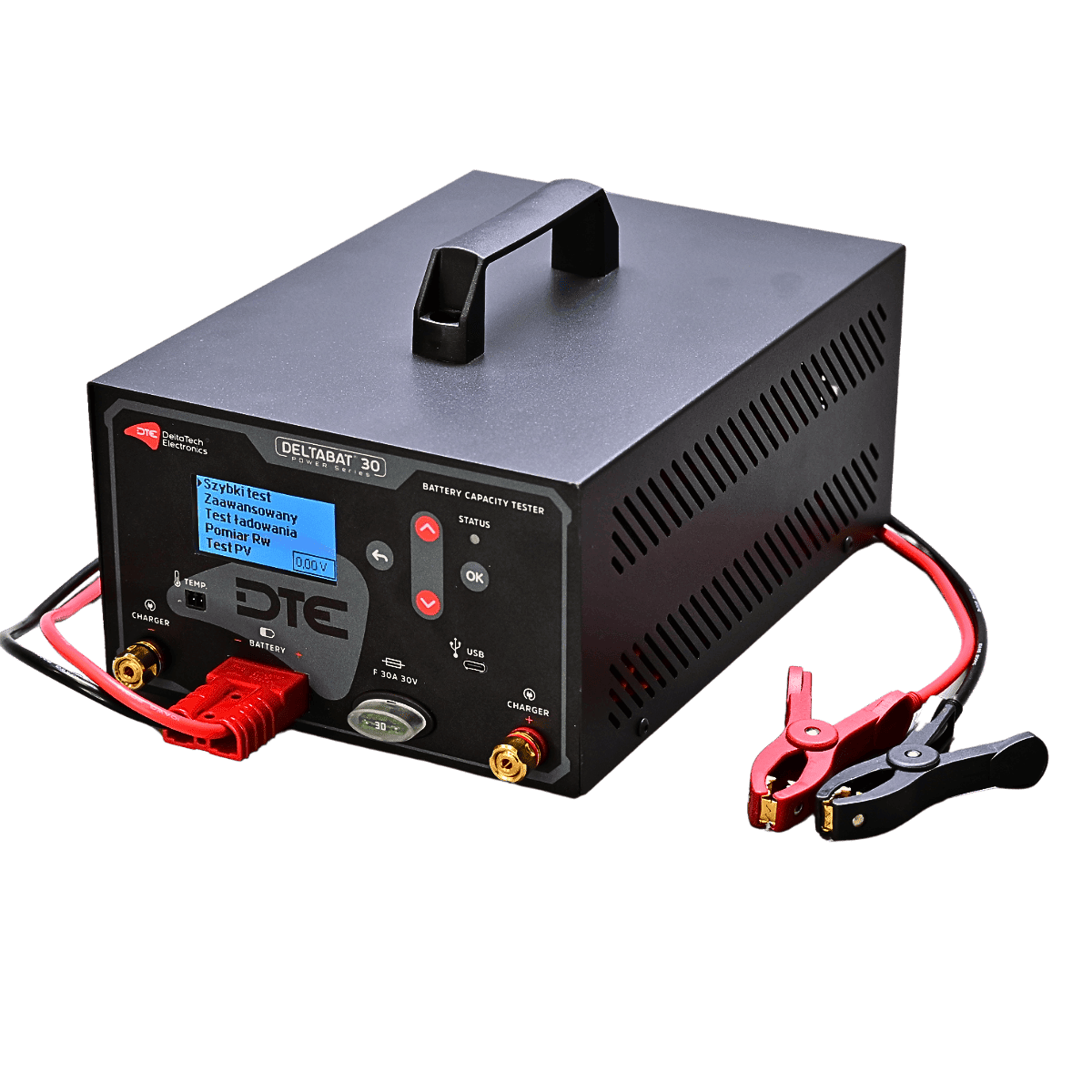

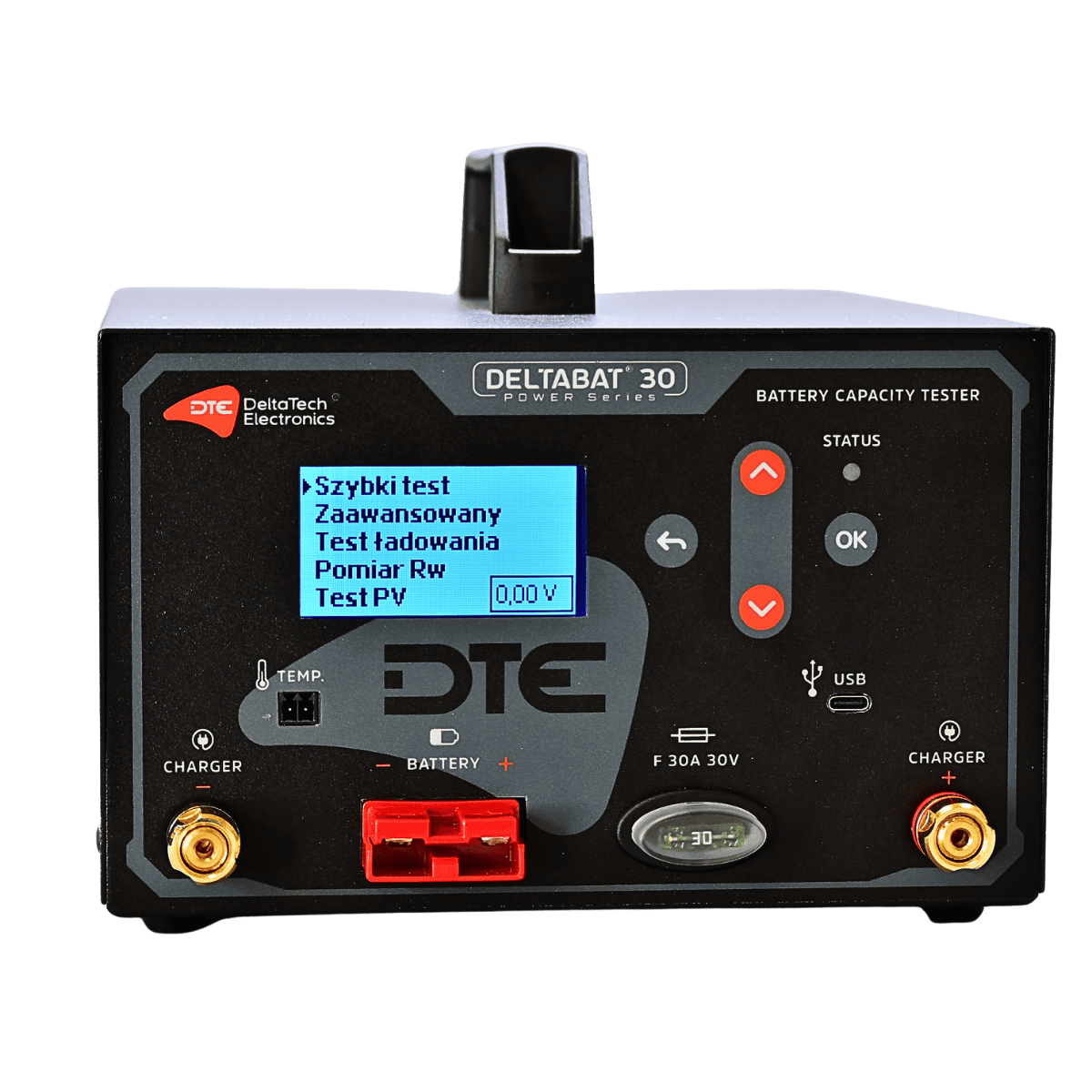

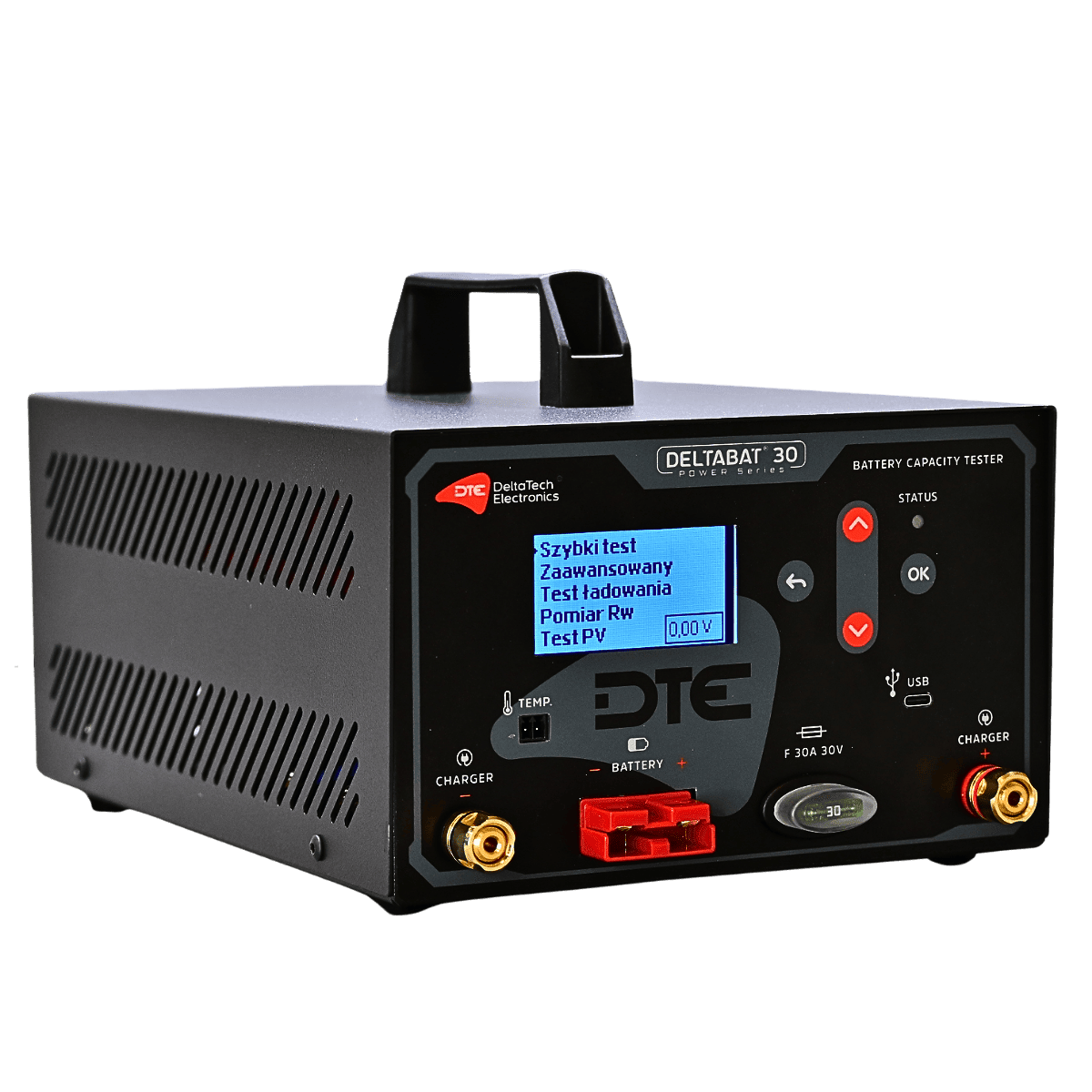

Battery capacity tester DELTABAT® 30

DescriptionThe DELTABAT® 30 battery capacity tester supports a voltage range from 1V to 30V and is compatible with acid batteries (AGM, gel, SLI), lithium (including LiFePO₄), nickel-cadmium, and sodium-ion batteries. Importantly, the device’s design allows for safe and repeatable use, even in intensive workshop conditions.  What can I use the DELTABAT® discharger for? Warranty and post-warranty verification of batteries.The customer reports issues with starting the vehicle’s engine. Although standard diagnostics (DBT-12 , BLT-600S) do not reveal significant irregularities, only a full capacity test using DELTABAT® shows significant degradation – the battery has only a fraction of its declared capacity, which, combined with frequent starts and short trips, creates a problem – the car won’t start.Practical test of energy storage and UPS  – We directly obtain an answer to the question of how long we can use the energy stored in the UPS to power selected devices. All we need to know is the power consumption in Watts.Quality control of supplies.  The importer receives a sample batch of batteries. Thanks to DELTABAT® , objective verification of compliance with the declared capacity is possible. Differences between nominal and actual values  provide a basis for making an informed purchasing decision. What distinguishes the DELTABAT® 30 battery capacity tester? Configurable test parametersDischarge current: from 0.1 A to 30 A,Discharge power: from 1 W to 400 W,Settable voltage threshold for test completion (e.g., 10.5 V for 12 V batteries).A wide range of supported batteries: SLI (lead-acid), EFB, AGM, gel, lithium (Li-Ion, LiFePO₄), NiCd, sodium-ion.Battery test modes:Simplified mode: quick diagnostics according to default parametersAdvanced mode: full configuration of battery type, voltage, and discharge conditions.The battery charging function allows for automatic charging after the test is completed (requires an external charger).Cyclic measurement function – the ability to automate measurement for up to 10 discharge and charge cycles.Additional features:Charging test: detailed analysis of the charging process using an external charger (not included in the set).Internal resistance test: assessment of the internal resistance of the battery under constant current load.PV test: measurement of photovoltaic cells for maximum power point (MPPT)Recording and analysis of results:Built-in internal memory,Data export via USB cableIntegration with an application and report generation in PDF format.Remote updateThe device’s software can be updated remotely via an application from a computer connected to the Internet.Industrial housingReinforced, metal construction adapted for use in a workshop environment,Designed for long-term use.  Technical parameters of DELTABAT® 30 Operating rangeVoltage of tested batteries: 1 V – 30 V,Discharge current: 0.1 A – 30 A,Discharge power: 1 W – 400 W.Charging current (external charger):  0 – 15 APower supplyThe device can be powered from a power supply with a voltage of 6 – 24 V.It is possible to power the device from the tested battery if the discharge voltage is at least 6V.For the purpose of transferring results or updates, the device can be powered from a USB-C port.Data managementSaving the last measurements in the device’s own memory,Reading data via the application (USB, WiFi) with the function of exporting reports in PDF format.Viewing the last results on the device’s LCD display.Supported types of batteriesTraction batteries and cellsSLI batteries – lead-acid batteries,EFB batteries – enhanced construction lead-acid batteriesAGM batteries,Gel batteries,Lithium batteries (Li-Ion, LiPo, LiFePO₄),Nickel-cadmium batteries NiCd,Sodium-ion batteries (Na-Ion, NIB, SIB) Don’t wait for signs of wear – check the capacity of batteries before they fail.Reserve DELTABAT® today and gain a service advantage!Allows for the elimination of complaints based on incomplete diagnostics,Ensures verification of battery quality before making a purchasing decision,Guarantees objective documentation of cell parameters,Enables quick diagnostics in simplified mode and precise testing in advanced mode.Integration  with the POWER series of devices from DeltaTech Electronics: DBT-12 , BLT-600S /BLT150T Dimensions of the DELTABAT® capacity testerLength/Height/Width: 321 (307 14) x 170 (130 40) x 212mmLength of measurement cables: 1050 mmWeight of the tester: 4.4 kg  Have technical questions? Want to introduce DELTABAT® to your service? Contact us  or reserve the device in pre-sale.
